Model no
C83900

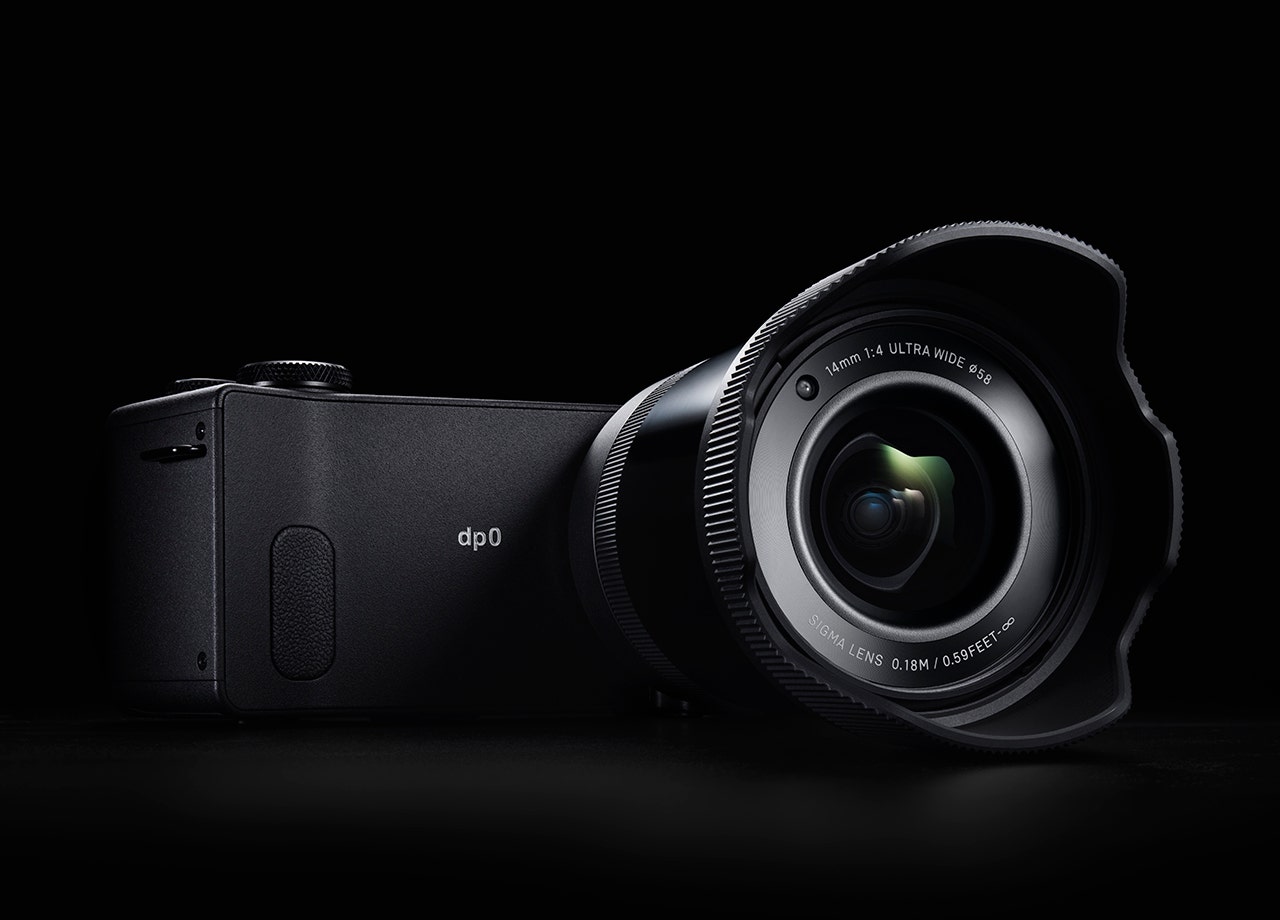

dp0 Quattro - Compact Camera

Wide angle meets Foveon resolution

• Type: Compact
• Fixed wide-angle 14mm F4 lens
• 4 FLD, 2 SLD and 2 Aspheric glass elements reduces chromatic aberration and distortion
• New Foveon Quattro Sensor
• Typical photography: Portrait, Family

1 080
Out of StockOut of Stock

Ultra-minimal distortion. Introducing extreme dp.

A difficult-to-manufacture large-diameter aspheric lens sits first in the optical series, reducing distortion to less than 1%*. Such minimization is critical to ultra-wide-angle performance. Designed to deliver an even wider angle of view than the dp1 and ultra-minimal distortion, the dp0 exemplifies the spirit of the dp Quattro series.

With its ultra-wide angle lens (equivalent to 21mm on a 35mm camera), the dp0 goes beyond the wide-angle dp1 to deliver a 91° angle of view and breathtaking perspective. It unlocks the door to incredible ultra-wide photographic expression!

*At infinity focus

Specifications
More Information
Storage MediaSD Card, SDHC Card, SDXC Card, eye-Fi Card eyefi
Sensor typeFoveon X3 Direct Image Sensor (CMOS)
Image sensor size23.5×15.7mm
Aspect ratio21:9, 16:9, 3:2, 4:3, 7:6, 1:1
Focal lenght14mm (11 Elements in 8 Groups)
35mm Equivalent Focal LengthApprox.21mm
Lens F numberF4~F22
Color, filter system11 types ( Standard, Vivid, Neutral, Portrait, Landscape, Cinema, Sunset Red, Forest Green, FOV Classic Blue, FOV Classic Yellow, Monochrome )* *It is not possible to select the mode when it is set as DNG.
Still Image File FormatLossless compression RAW data (14-bit), DNG (No compression RAW Data 12-bit), JPEG (Exif2.3), RAW+JPEG
File size - JPEG

 RAW  HIGH             T:5,424×3,616
                                  M:2,712×1,808
                                  B:2,712×1,808

LOW                         T:2,704×1,808
                                 M:2,704×1,808
                                 B:2,704×1,808

[3:2]  RAW - DNG   HIGH  5,424×3,616
                                 LOW   2,704×1,808


[21:9]  JPEG  SUPER-HIGH 7,680×3,296
                                    HIGH 5,424×2,328
                                    LOW  2,704×1,160
                                    S-LO  1,920×816

[16:9] JPEG   SUPER-HIGH  7,680×4,320
                                   HIGH   5,424×3,048
                                   LOW    2,704×1,520
                                   S-LO    1,920×1,080

[3:2]  JPEG     SUPER-HIGH   7,680×5,120
                                  HIGH    5,424×3,616
                                  LOW     2,704×1,808
                                  S-LO     1,920×1,280

[4:3]  JPEG   SUPER-HIGH    6,816×5,120
                                 HIGH    4,816×3,616
                                 LOW      2,400×1,808
                                 S-LO      1,696×1,280

[7:6] JPEG     SUPER-HIGH  6,352×5,120
                                   HIGH  4,480×3,616
                                   LOW   2,224×1,808
                                    S-LO  1,584×1,280


[1:1]  JPEG         SUPER-HIGH  5,120×5,120
                                        HIGH  3,616×3,616
                                        LOW  1,808×1,808
                                        S-LO  1,280×1,280

Recording pixels / Frame rate (Internal)

n/a

Cinema DNG recording media limits (Internal)
AF Lock (Focus)Shutter release halfway-down position (AF lock can be done by AE lock button from menu setting)
Metering SystemEvaluative Metering, Center-Weighted Average Metering, Spot Metering
ISO SensitivityISO100–ISO6400 (1/3 steps for appropriate sensitivity), AUTO: High limit, low limit setting is possible between ISO100~ISO6400. When using with flash, it changes depending on the low limit setting.
AE Lock (Exposure Control)AE lock button
Exposure BracketAppropriate, under, over; 1/3EV steps up to ±3EV for appropriate exposure (auto)
White balance Settings10 types ( Auto, Auto (Lighting Source Priority), Daylight, Shade, Overcast, Incandescent, Fluorescent, Color Temperature, Flash, Custom )
Shutter Speed1/2000* - 30sec. (*Depending on the aperture value, shutter speed changes)
Drive ModesSingle, Continuous, Self Timer (2sec. /10sec.) Interval timer
Monitor Type / CoverageTFT color LCD monitor
Color mode11 types ( Standard, Vivid, Neutral, Portrait, Landscape, Cinema, Sunset Red, Forest Green, FOV Classic Blue, FOV Classic Yellow, Monochrome )* *It is not possible to select the mode when it is set as DNG.
Display LanguageEnglish / Japanese / German / French / Spanish / Italian / Chinese(Simplified) / Chinese(Traditional) / Korean / Russian / Nederlands / Polski / Português / Dansk / Svenska / Norsk / Suomi
USBUSB / Cable Release Switch
HDMIno
Dust- & splash-proof structureno
PowerLi-ion Battery Pack BP-51, Battery Charger BC-51, AC Adapter SAC-6 (with DC Connector CN-21) (Optional)
Weight (g)500g/17.6oz (without battery and memory card)
AccessoriesLens Cap (Supplied) / Lens Hood LH5-01* (Supplied) / Hot shoe cover (Supplied) / Strap / Li-ion Battery BP-51 (2 pieces) / Battery Charger BC-51 / Battery Charger Cable / USB Cable / Instruction Manual *Only for dp0 Quattro
* All figures calculated by L-Mount. Note: The L-Mount Trademark is a registered Trademark of Leica Camera AG. About Product Name: Product name includes "DG" when the lens is designed to deliver the ultimate in performance on cameras with full-frame sensors, and "DN" when the lens design is optimized for mirrorless cameras with the short flange focal length.

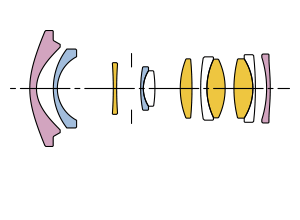

Lens Construction
Geometrical MTF Chart

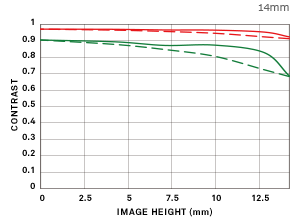

Diffraction MTF Chart
